PRIMARY & SECONDARY CRUSHERS

  1. Home
  2. PRIMARY & SECONDARY CRUSHERS

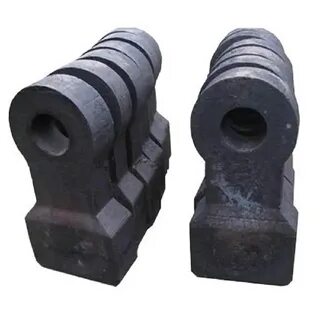

Crusher Hammers

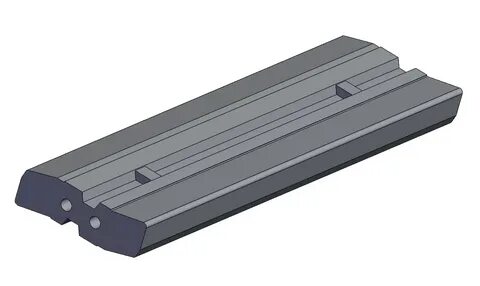

Blow Bar

Blow Bars & Crusher Hammers

Crusher blow bar Crusher Hammers supply is a vital part of maintaining the performance and longevity of impact crushers. Due to, JME’s Selective process, from material selection to machining and quality control, ensures that these components can withstand the tough demands of material Crusher Hammers Blow Bar crushing.

Crusher Tooth Segments

JME Has been manufacturing tooth segments for Sizers. Due to JME’s Selective process, the product giving enhanced life and performance, meanwhile we are supplying mating components of the same like Rotor Shaft, Side Comb, Sizer Drum etc… etc…
Low Energy Grate Plate
MFR Plate

JME’s Products of Cooler

JME Supplying Cooler Low Energy Grate Plate which is designed to improve clinker cooling efficiency while reducing operational energy demand. Each air distribution plate is equipped with a Mechanical Flow Regulator that maintains a constant airflow through the clinker bed.

Grate Protection Plate

GRATE PROTECTION PLATE has been developed JME in a single investment casting without any joints & welding. This G P Plate is made from special alloyed, abrasion-resistant materials to withstand clinker impact and sliding. This special metallurgy designed to endure extreme temperature fluctuations in the cooler environment which enhances the life almost double times of ordinary conventional G P plates (Fabricated G P Plates).

C – Profile 1200 & C – Profile 600

JME supplied C-Profiles 1200mm & 600mm manufactured with special high wear resistance plate which is placed front side of the C- Profile which will provide the enhanced life of the product. JME’s precise engineering, these components are designed to perform under the most demanding cement plant conditions.

Drive Plates

JME Supplying drive plate is a critical wear component in clinker cooler operation. JME’s Special engineering supply and high-quality manufacturing, ensure smooth performance of drive plates and reduced maintenance costs which is very much helpful to the improved clinker cooling efficiency.
Intermediate
Drive Plate Inlet
Outlet

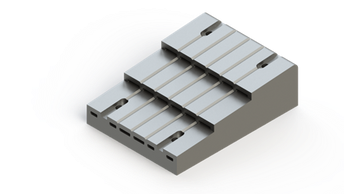

STEPPED GRATE PLATE (Grate Plate 300HT)

JME Supplied this Grate Plate 300HT to major cement plants in India, which is made up of special Alloyed Cast Steel (to with stand high heat and wear resistant). Precisionengineered air slots and step geometry to maximize cooling efficiency. This Grate Plates are especially designed to, improves clinker bed fluidization, minimizing snowman and red river formations.

Cross Bar Stationary & Movable

These cross bars are made by high wear resistant and high temperature with standing material. Our reliable and superior material quality, precise manufacturing, and proven durability, the supplied components offer reliable performance, reduced maintenance, and optimized cooler efficiency.
Stationary Bracket
Movable Bracket
Stationary Cross Bar
Movable Cross Bar
U Profile Intermediate
U- Profile Cove
U Profile Outlet
Base Plate Wall

U Profile Castings

These cross bars are made by high wear resistant and high temperature with standing material. Our reliable and superior material quality, precise manufacturing, and proven durability, the supplied components offer reliable performance, reduced maintenance, and optimized cooler efficiency.

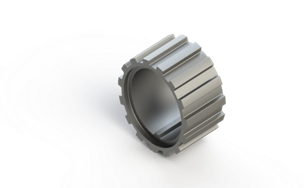

CLINKER CRUSHER HRB RINGS

JME is an expert manufacturer in HRB Crusher Rings. These Clinker Crusher HRB Rings are critical wear components used in clinker crushers / hammer roll breakers (HRB) installed at the discharge end of clinker coolers in cement plants, which is used to break large clinker lumps into manageable sizes, ensuring smooth conveying, reduced wear on downstream equipment, and consistent cooler performance.
Jai Metal Engineering has been manufacturing and supplying the following Cooler Spares also,
